LINKT™ Compression Staple System

As part of Trax Surgical's broader line of internal fixation systems for clinical applications in bone fixation, the LINKT™ compression staple system is designed for specific hand and foot bone fixation procedures. LINKT™ bone compression staples are made from a blend of nickel and titanium, known as Nitinol, a shape-memory material that delivers continuous compression to support bone fusion.

LINKT™: A Single-Use Implant and Deployment Kit for Bone Fixation

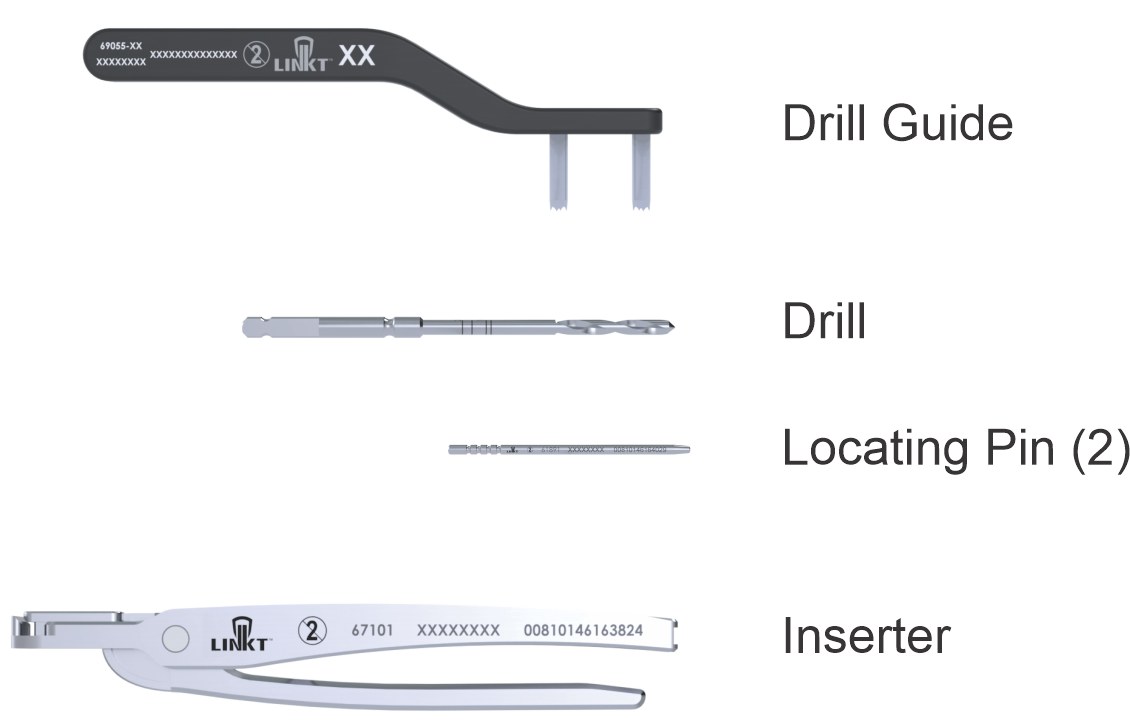

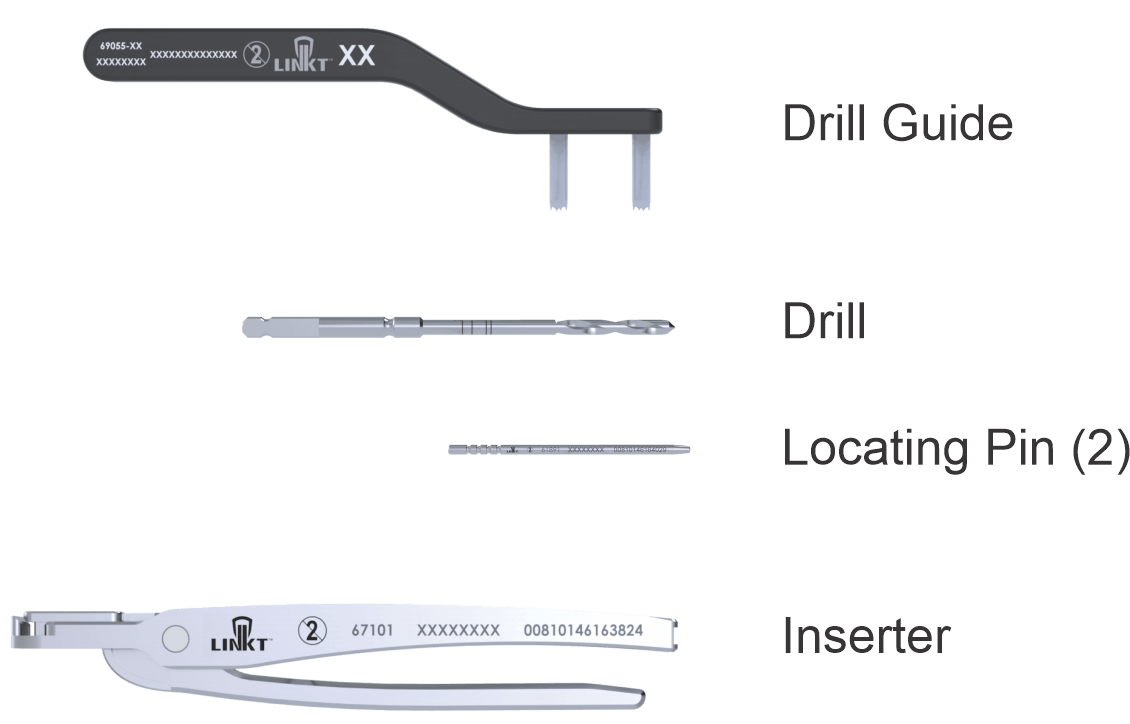

For single-use implant deployment, the LINKT™ compression staple system includes pre-sterilized surgical instrumentation for fractures, osteotomies, and joint arthrodesis in the hands and feet. Products and components within the implant deployment kit are designed for precise and efficient use, with the following solutions included:

Bone Compression Staple
Inserter
Drill
Drill Guide

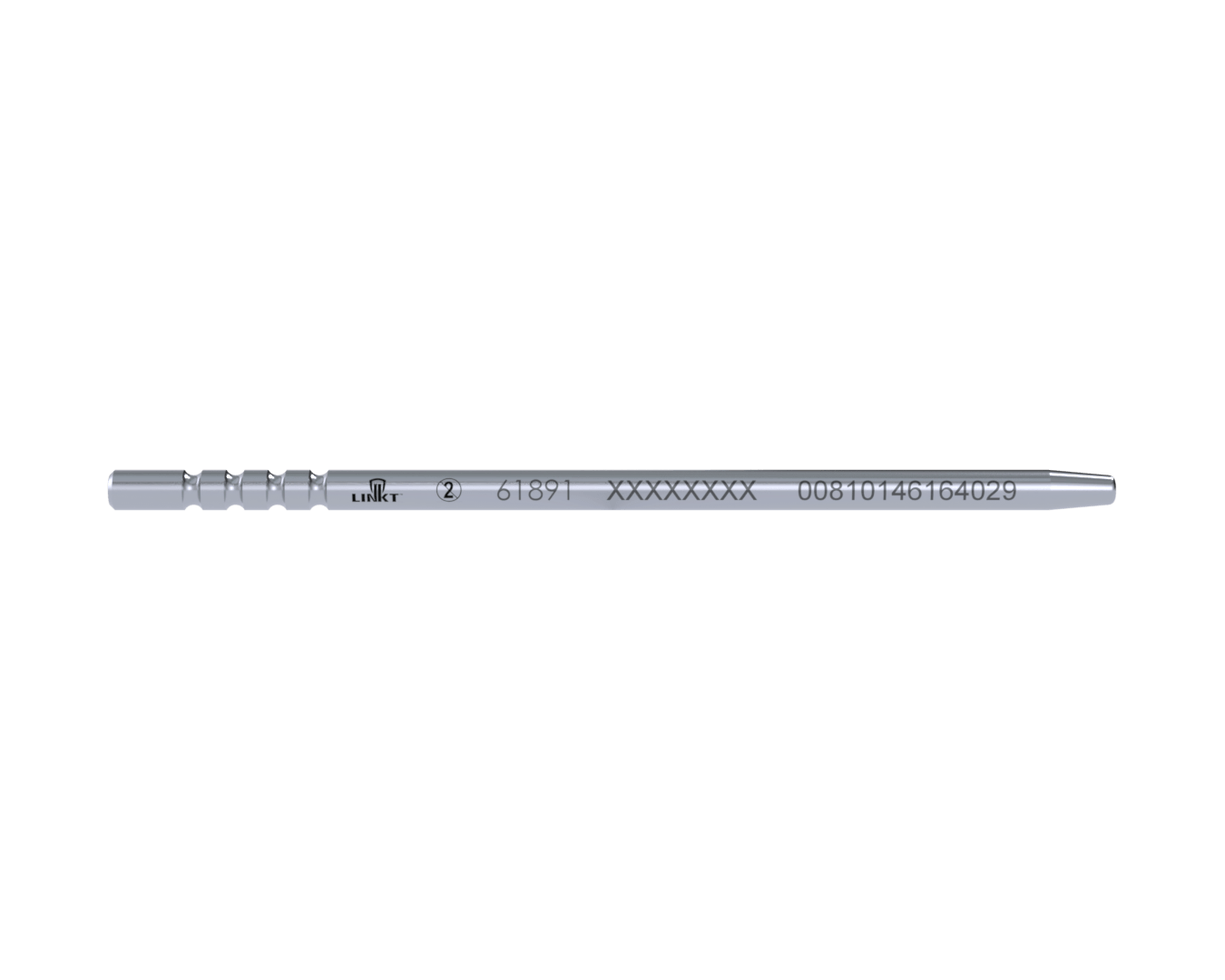

Locating Pins

Available in seven sizes, LINKT™ bone compression staples range from 9 x 9 mm to 20 x 20 mm, and all products are manufactured and packaged in an FDA-registered, ISO 13485:2016-certified facility to ensure quality and compliance.

Material Composition and Benefits of Bone Compression Staples

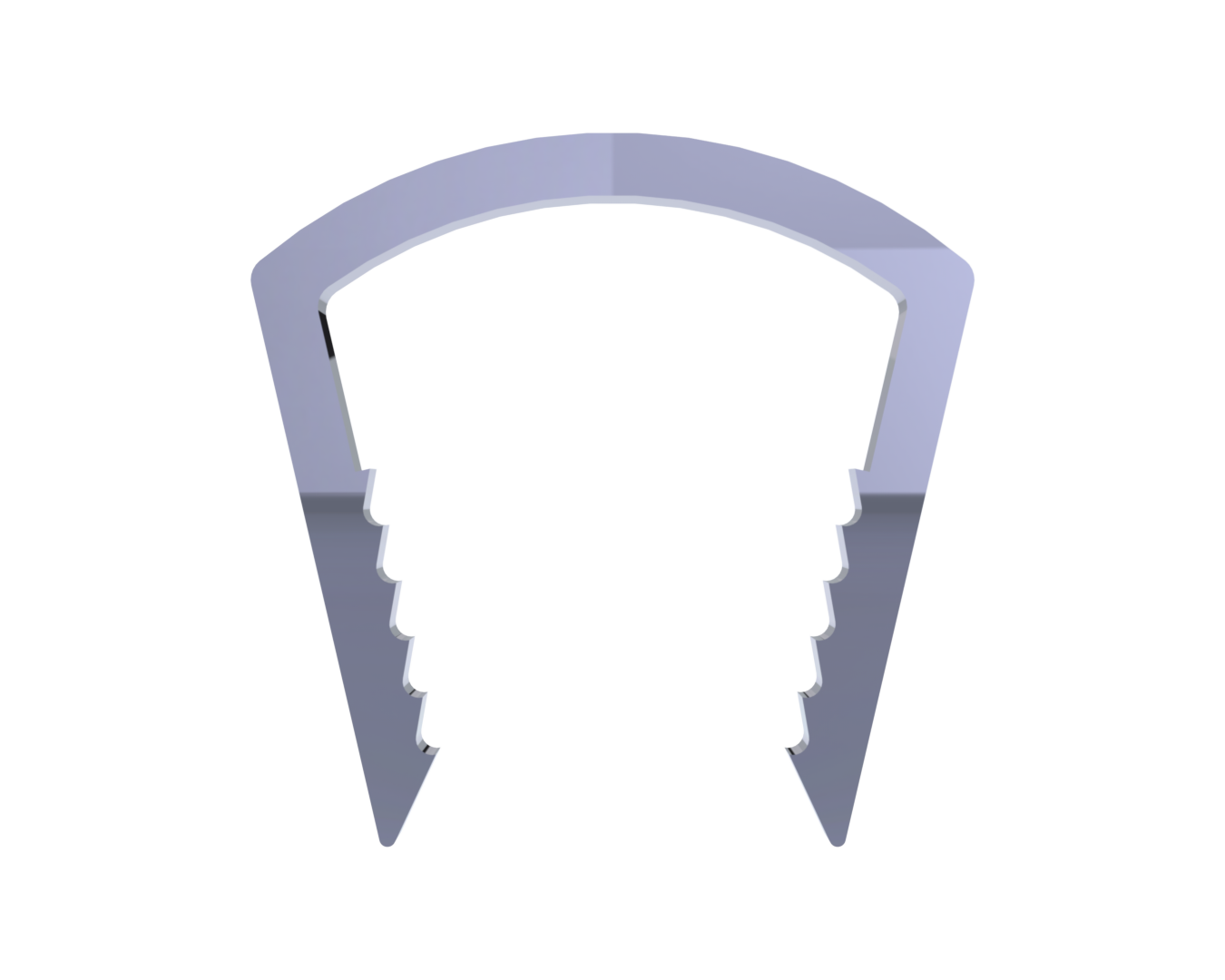

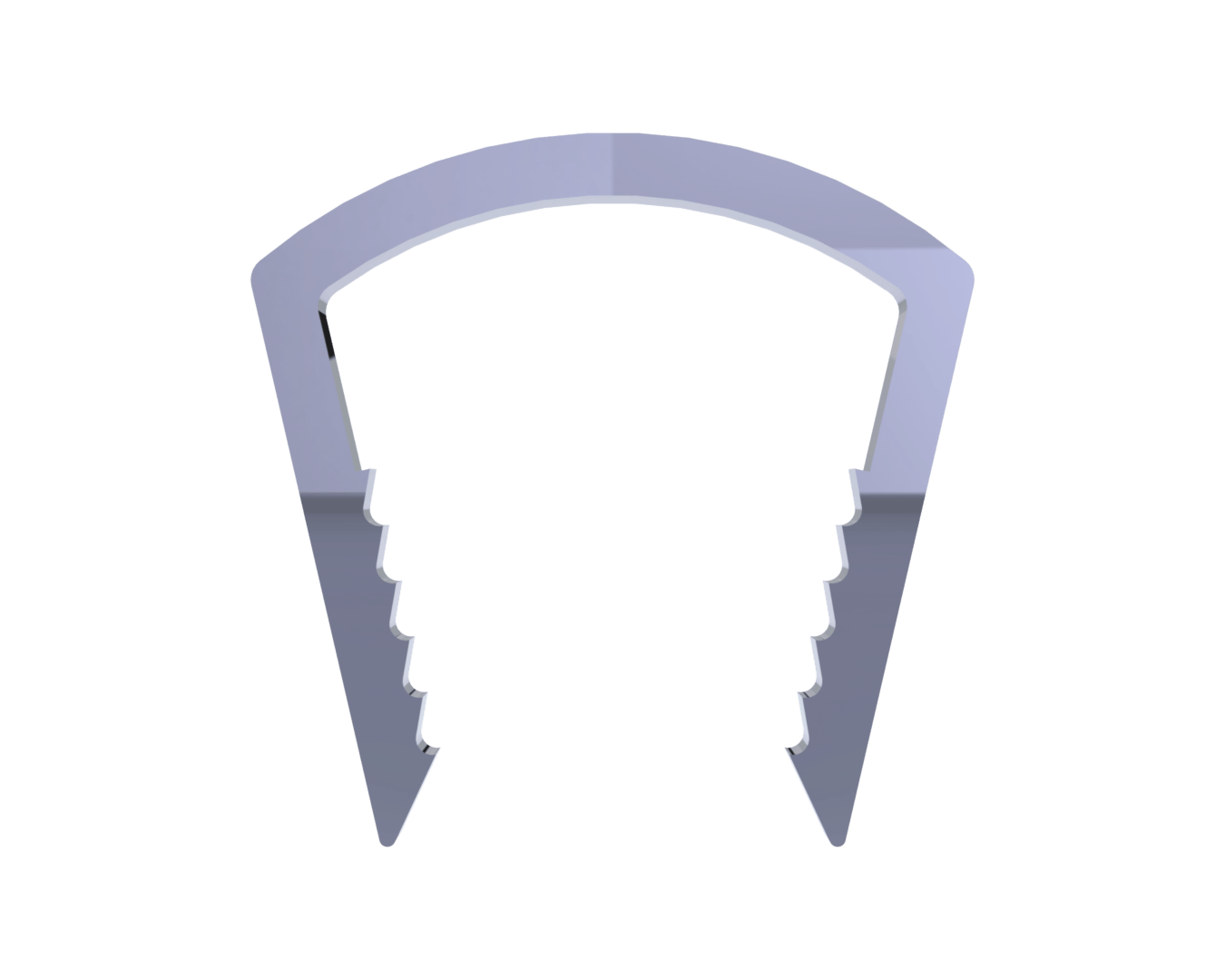

Bone compression staples in the LINKT™ fixation system are made from Nitinol, a nickel-titanium alloy, which provides elasticity, strength, and inherent compressive characteristics. As the primary material, Nitinol bone staples deliver a constant compressive force, allowing the staple to maintain bone fragment approximation and stability at the osteotomy site, thereby supporting fixation and fusion stability. The accompanying surgical instrumentation is made of stainless steel and polyphenylsulfone (PPSU), which are disposable following the operation.

Applications of the LINKT™ Compression Staple System in Extremity Surgeries

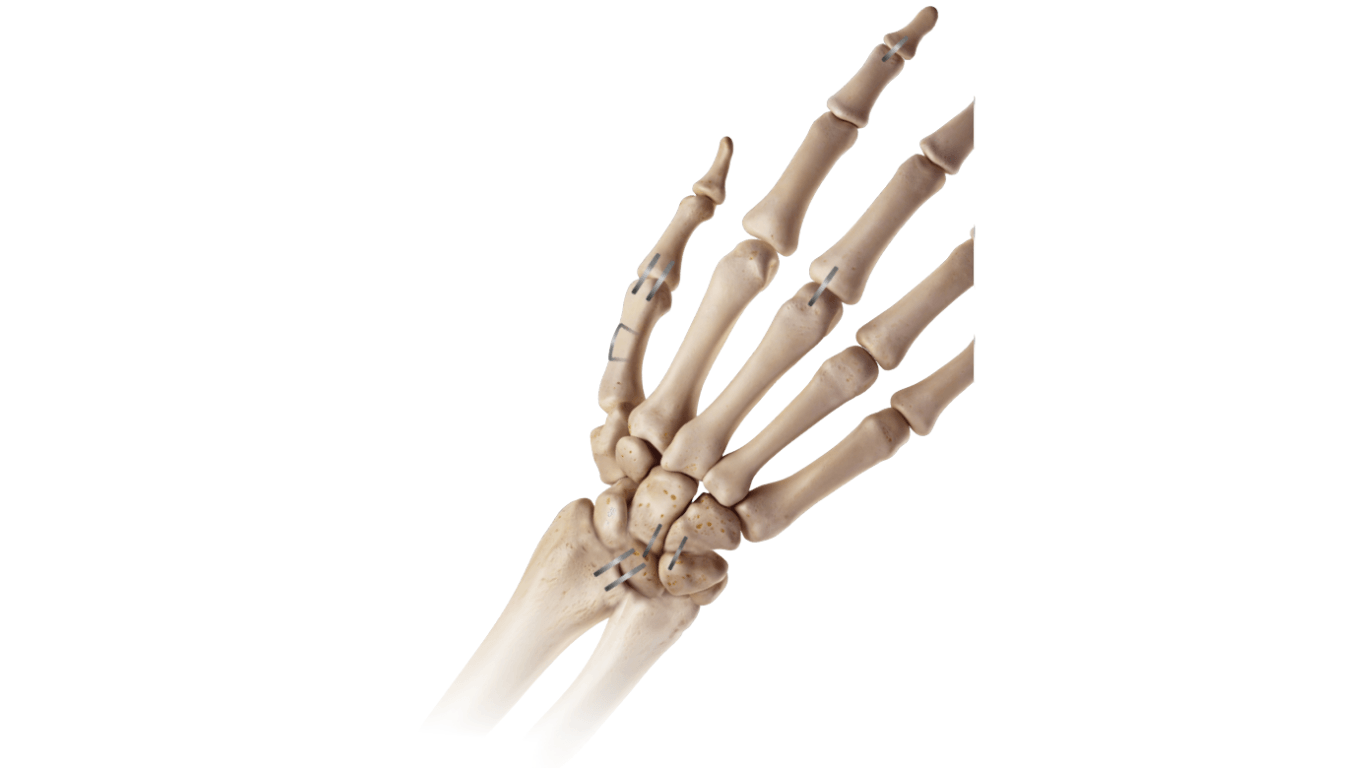

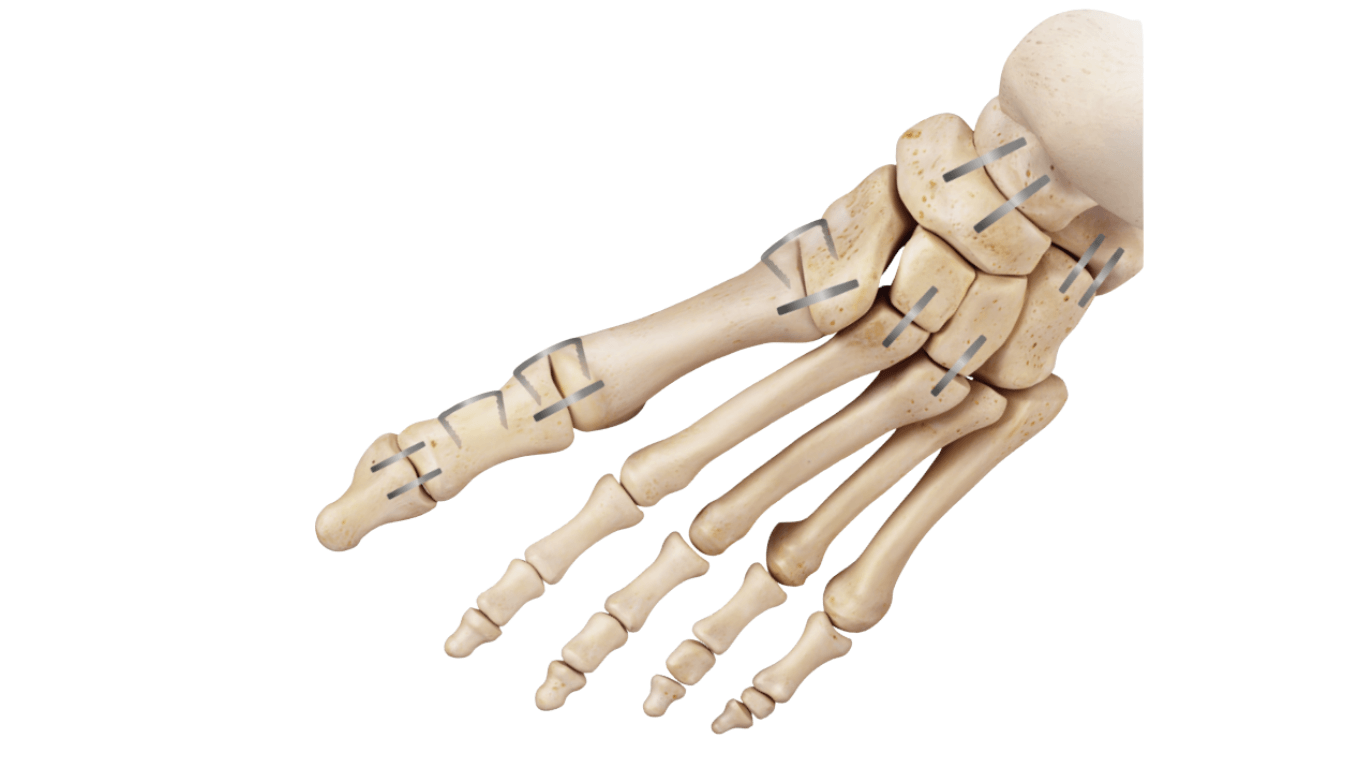

The LINKT™ compression staple system was designed to support bone fracture fixation in specific surgical procedures for the upper and lower extremities. It is intended for use in fracture and osteotomy fixation, as well as joint arthrodesis of the hand and foot, particularly in use cases for:

Maintaining correct bone positioning after surgical cuts
Assisting alignment in guided growth procedures
Supporting fixation in joint fusion or osteotomy

How to Use the LINKT™ Compression Staple System: A Step-by-Step

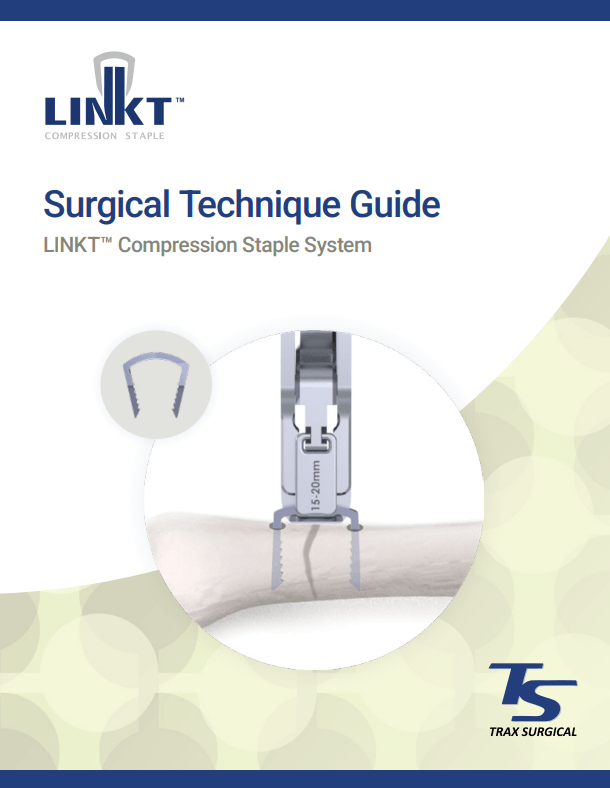

View the LINKT™ Surgical Technique Guide

Step 1: Select the Appropriate Size

First, determine the appropriate staple size for the procedure, then select the matching sterile LINKT™ Staple and Deployment Kit. While maintaining the desired reduction, position the drill guide across the fusion site with both guides touching bone.

Step 2: Drill the Holes

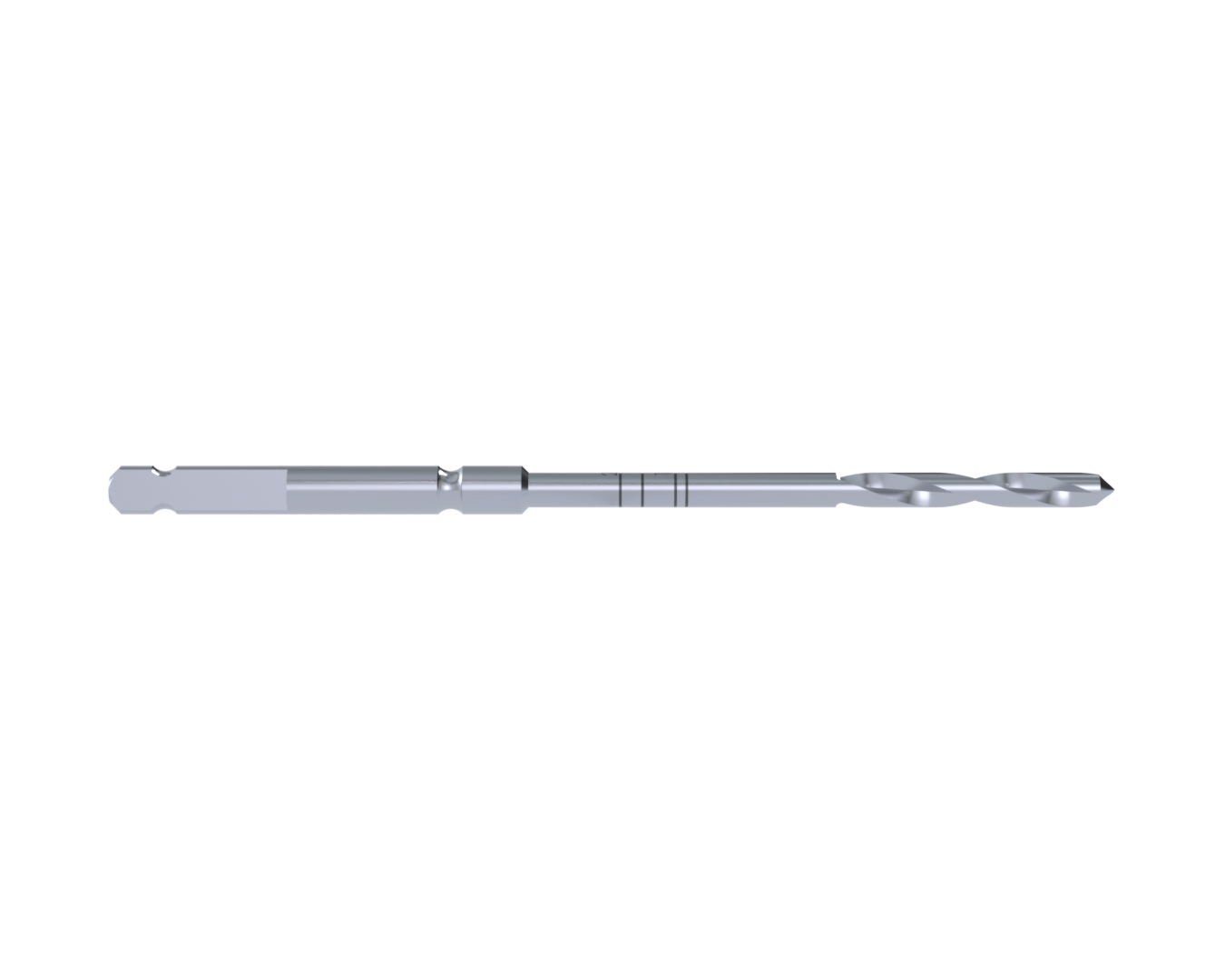

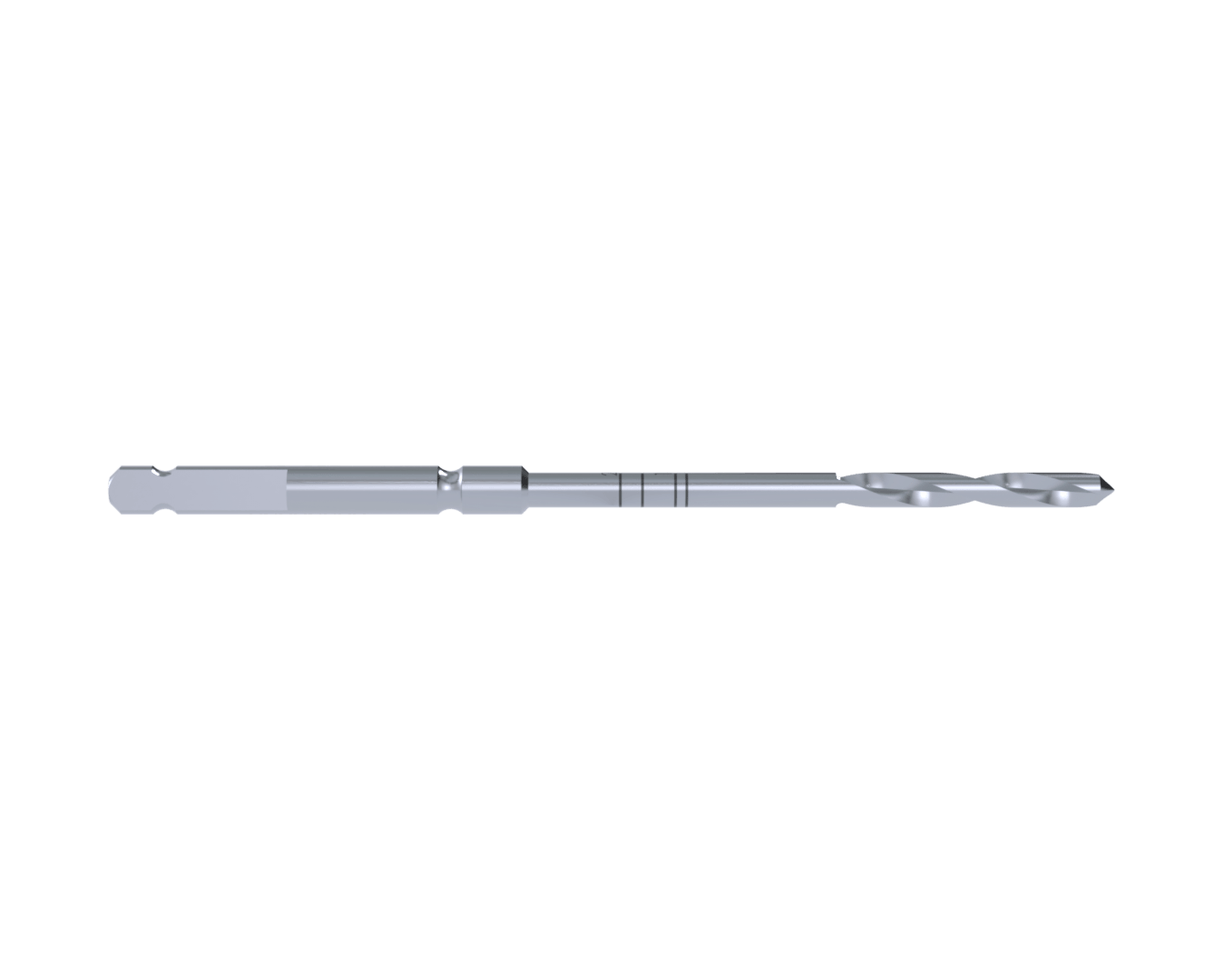

Using the supplied drill, create the first hole to the appropriate depth, referencing the depth markings that correspond to the staple leg length. Insert a locating pin to maintain reduction, then drill the second hole to the same depth.

Step 3: Prepare the Staple for Insertion

Place the staple onto the inserter and close the handle to secure it. Squeeze the handle to open the staple legs so that they are parallel and ready for placement.

Step 4: Insert the Staple

Align and insert the staple tips into the prepared holes while maintaining the reduction of the bone fragments. Seat the staple as flush to the bone as possible. If necessary, implant positioning may be evaluated radiographically.

Step 5: Final Seating

Move the inserter lever to the open position to release the implant. Apply gentle pressure or use a mallet to fully seat the LINKT™ compression staple. Additional staples may be applied as needed to achieve stability.

Answering Your Questions About LINKT™ Internal Fixation Systems

To determine whether the LINKT™ compression staple system meets the needs of specific surgical applications, we’ve answered some frequently asked questions about the product. If you have additional questions, please reach out to us, and one of our experts will be happy to assist you.

What material are LINKT™ bone compression staples made from?

Featuring biocompatible materials, the LINKT™ internal fixation system includes stainless steel and polyphenylsulfone (PPSU) instruments, while the bone compression staples are manufactured from Nitinol, an ASTM F2063 nickel-titanium alloy.

What is the LINKT™ compression staple system used for?

Designed for bone fixation in the extremities, the LINKT™ deployment kit is intended for fracture and osteotomy fixation, and joint arthrodesis of the hand and foot.

What sizes are LINKT™ compression staples available in?

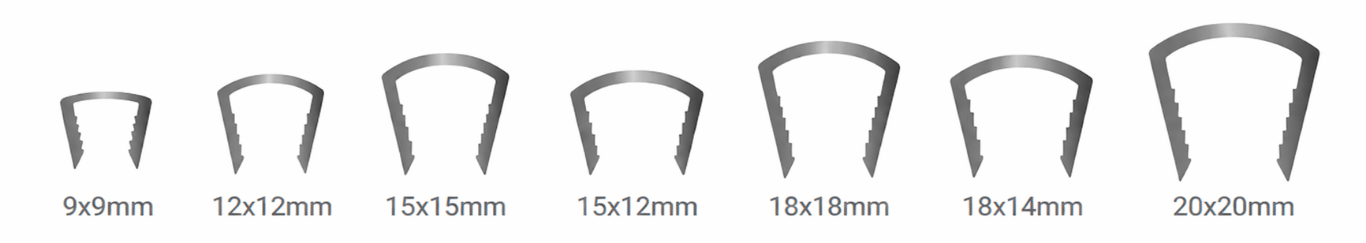

The LINKT™ internal fixation system includes bone compression staples in seven implant sizes:

9 x 9 mm
12 x 12 mm

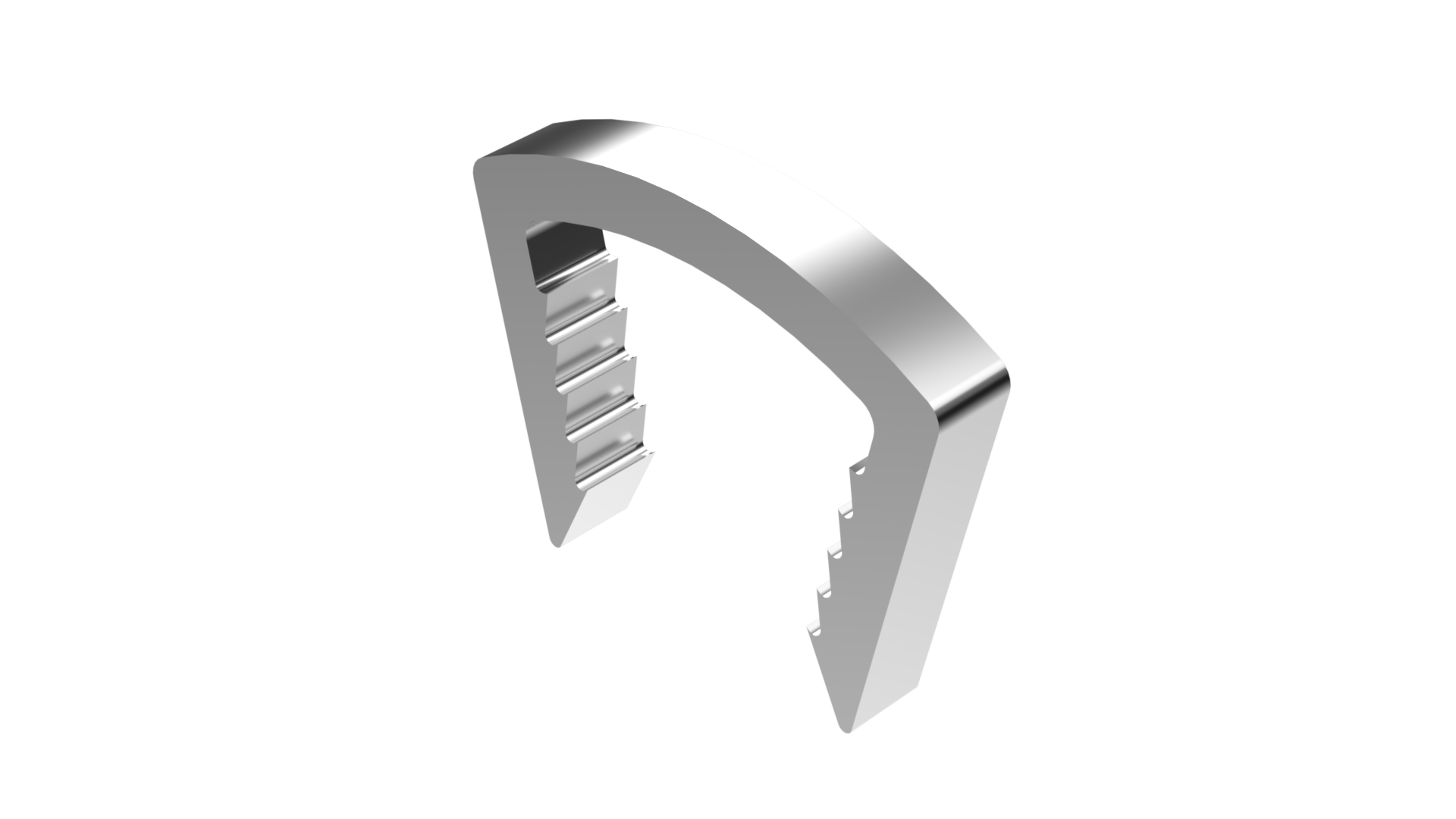

15 x 12 mm
15 x 15 mm
18 x 14 mm
18 x 18 mm
20 x 20 mm

Choose Trax Surgical for Bone Compression Staples and Critical Surgical Components

As an innovative manufacturer of medical instrumentation and implant devices, Trax Surgical focuses on precision manufacturing for long-term reliability across orthopedic fixation systems. With all internal fixation systems produced in an FDA-registered facility with ISO 13485:2016 certifications, we are committed to providing premium medical solutions and adherence to the highest level of quality and regulatory standards.

Trax Surgical collaborates with medical professionals to develop products that meet the complex needs of specific surgical environments, ensuring each solution delivers optimal performance and comfort when inside the human body. Contact Trax Surgical for more information on our surgical instrumentation or find a distributor.
